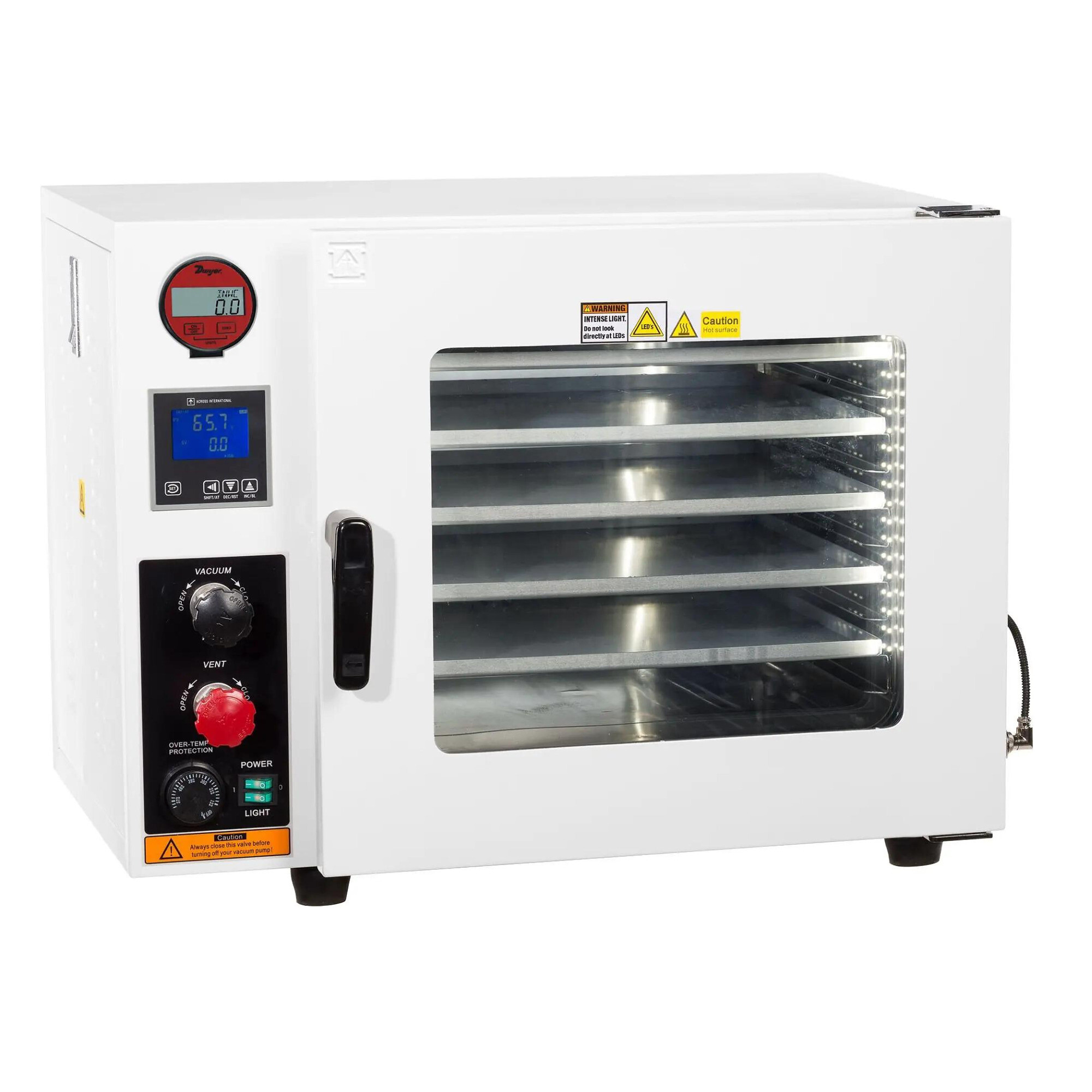

250C UL Certified 1.9 CF Vacuum Oven 5 Sided Heat SST Tubing
$2,290.00 – $3,624.00
AT19 series digital desktop vacuum ovens feature a 1.9 cubic foot easy-to-clean stainless steel chamber with a large dual-layer tempered glass safety window and small footprint. These ovens can greatly reduce drying time by maintaining a consistent vacuum level within the chamber. Every one of our vacuum ovens goes through a 2-time 24-hour vacuum leak test, and is 100% quality controlled in New Jersey or Nevada before leaving our facilities.
Attention: Before initial use, run oven at 200°C/400°F without vacuum for 15 minutes to burn off any residue that may have been introduced during the manufacturing process.
IMPORTANT! NEVER LEAVE YOUR OVEN UNATTENDED WHILE OPERATING. Across International is not responsible for any loss of material inside of the oven.
Features
- UL certified.
- All stainless steel internal tubing & compression fittings provides higher ultimate vacuum, holds vacuum 10 times longer, and require minimum maintenance.
- Oil-filled mechanical vacuum gauge provides more accurate reading, longer gauge life and minimizes shipping damage.
- All stainless steel vacuum and vent valves gives you cleaner connection, more accurate control and long term durability.
- New 5 sided pad heating technology and aluminum shelves provide excellent temperature uniformity and faster heating rates (25% faster in our lab test).
- Adjustable gas back fill capability with needle valve and vent port.
- 4th gen LCD low proportional gain temperature controllers keep your oven temperature accurate.
- Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time.
- Dual layer observation window with 1/2″ tempered safety glass.
- 3″ thermal insulation prevents heat loss and minimizes the enclosure’s outer surface temperature.
- Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
- Built-in alarm alerts you when oven has been shut down by safety circuitry due to out of range temperature.
- All ovens shipped from our New Jersey or Nevada location for quick delivery, and come with two year warranty and lifetime US-based parts and service support.
- Guaranteed US based phone and email assistance within 30 minutes from our engineers.
Manufactured in accordance with the following standards
- UL 61010-1
- CSA C22.2
- ISO 9001:2000
- ISO 12100-1:2003, ISO 12100-2:2003
- EN1050:1996, EN294:1992, EN60204-1:2006
- CE
AT vacuum oven installation and calibration (English)
AT vacuum oven installation and calibration (Spanish)
| Weight | 240 lbs |
|---|---|
| Dimensions | 32 × 28 × 29 in |
| Power option | 110V 60Hz, 220V 50/60Hz |
| Shelf option | No additional shelf, 5 additional aluminum shelves (+345.00) |
| Door sealing gasket | silicone gasket (no extra charge), Food grade solvent resistant Viton gasket (+199.00) |
| Vacuum setup | KF25 flange port with no pump (no extra charge), Ai 110/220V EasyVac 7cfm pump with mist filter (+590.00), Ai 110/220V EasyVac 9cfm 2-stage pump with filter (+790.00) |
Specifications
| Electrical requirements | 110V +/-10% 60Hz 1-PH 13.6A, 1,500 watts or 220V +/-10% 50/60Hz 1-PH 6.8A, 1,500 watts |
|---|---|
| Chamber | Size: 16.5 x 14.5 x 14″ Material: Stainless steel Capacity: 1.9 cubic foot |
| Heater | 5-sided heating (left 350W, right 350W, top 220W, bottom 480W, back 100W) |
| Temperature control | Controller: low proportional gain, microcomputer PID controlled with LCD display Range: ambient to 250°C (or 480°F) Display units: Fahrenheit or Celsius Uniformity: +/- 5% of setpoint Dwelling timer range: 1 to 9999 minutes Warm-up time to 100°F: 45 minutes |
| Vacuum | Ultimate vacuum level: better than 500 microns/millitorrs (may vary based on your altitude,click here to learn more) Mechanical gauge range: 0 to 30 inch mercury Vacuum port: KF25 flange Vent port: KF25 flange Vacuum pump: Sold separately |
| Weight | Unit: 140 Lbs, shipping: 240 Lbs |
| Dimensions (WxDxH) | Unit: 28 x 20 x 21.75″ With handle and vacuum port: 28 x 23 x 21.75″ Shipping: 32 x 28 x 29″ |
| Shelves | Included with oven purchase: 5 aluminum slide-in shelves Capacity: 10 shelves max. Style: pan-shape Size: 16 x 14.25 inches Total area: 228 x 10 = 16 sq ft or 2,280 inch2 Distance between shelves: one inch |
| Door gasket material | Silicone or Viton |
| Observation window | 1/2″ tempered safety glass |
| Safety | Built-in circuit breaker Overheat shutoff protection Secondary over-temp protection dial |
| In-door lights | White LED |
| Warranty | 2 years |
| Compliance | UL(E482564), CE |
Standard Packages
| Â Part description | Â Quantity |
Part image |
|---|---|---|
| Â Ai UL certified 1.9 cu ft vacuum oven | 1 pc |  |
| Â Aluminum shelf | 5 pcs |  |
| Â KF25 quick clamp and centering ring | 1 set |  |
| Led Light Cable | 1 pc |  |
| Â Users manual | 1 pc |  |
