4″ Tri-Clamp Dewaxer Columns
$105.00 – $260.00

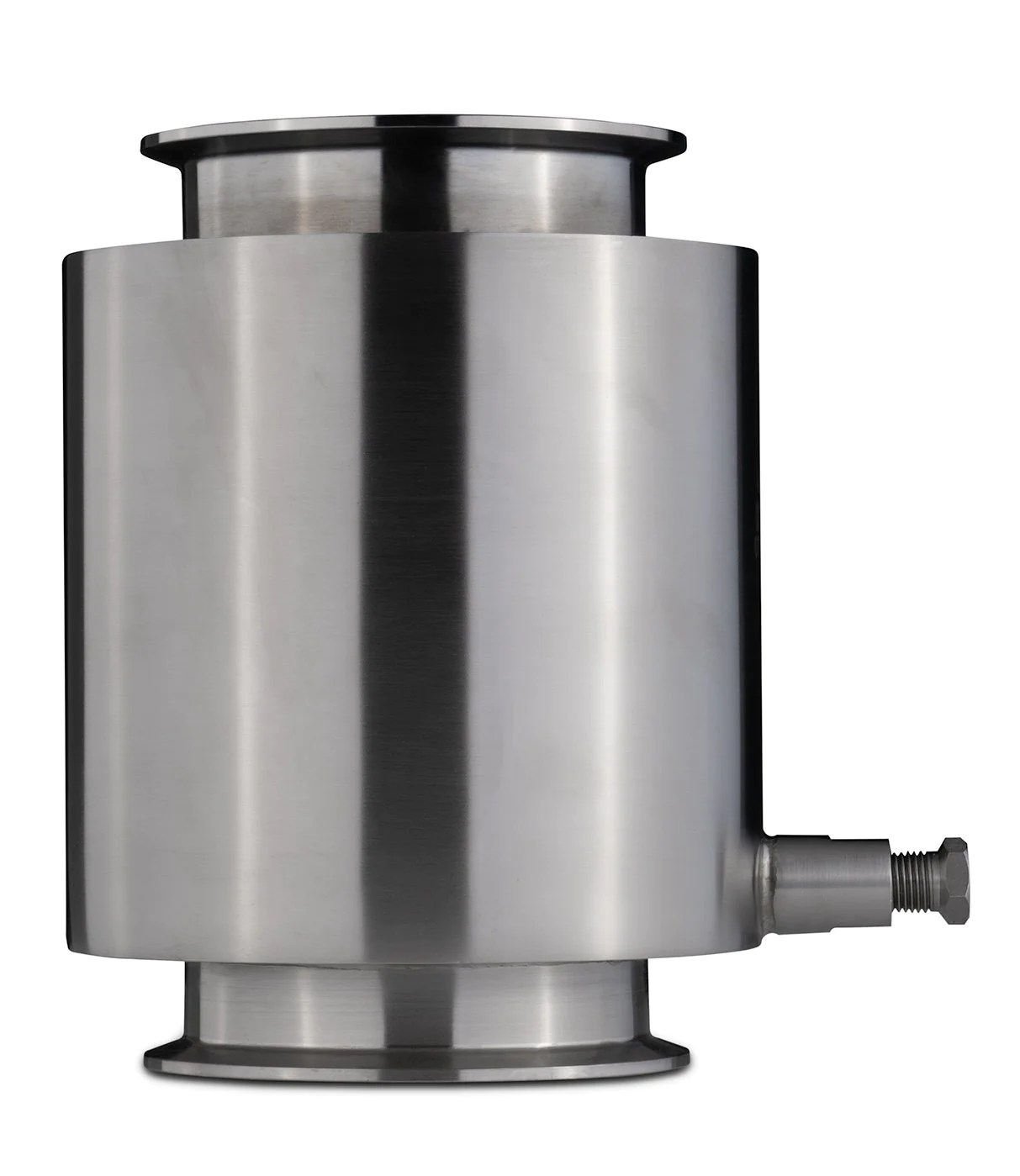

This is a 4″ Tri-Clamp BVV™ Tri-Clamp Dewaxing Spool. It is intended to have dry ice put into the sleeve to chill the material inside the column.
**Note: When selecting a Pipe Hanger choose the size that correlates to the Sleeve OD NOT Spool OD
Specifications:
| Tri-Clamp Size | 4″ |
| Material | 304 Stainless Steel |
| Standard | 3A High Polish |
| Sleeve OD | 6.000″ |
| Spool ID | 3.834″ |
| Spool OD | 4.000″ |
| Flange OD | 4.682″ |
| Bead Center | 4.344″ |
| Drain Port | 1/4″-18 FNPT (Drain Plug Included) |
-
- OD = Outer Dimension
-
- ID = Inner Dimension
Disclaimer to Customer: User assumes all responsibility and risks of the system for all Stainless Steel Parts bought separately to piece together a Closed Loop, Closed Column, or Open Blast Extractors. They DO NOT come with a standard 1 year system warranty, customer assistance on how to run your system, technical help or a guarantee of the system being tested.
| Length | 8", 24", 36" |
|---|
