-40°C 100L Closed Loop Recirculating Chiller W/ Touch Screen CLC-100/40-PLC 30L/Min
$20,278.80
Oil Tank Capacity: 32L
Temperature Range: RT to -40°C / -40°F
Power Requirements: 200-240V 60Hz 20.4A Three Phase – Hardwired Only
Refrigeration BTUs / Wattage: 75,000BTU – 1,250BTU / 22050-368W
Compressor Type: 10HP Danfoss (UL Listed)
Circulating Pump Wattage: 750W (UL Listed)
Inlet / Outlet Size: 1.5″ FNPT
External Dimensions: 43.3″ x 31.4″ x 51.2″
Weight: 430lbs

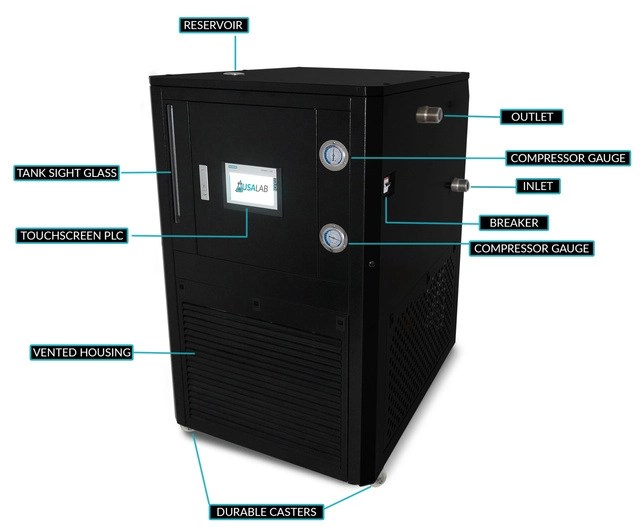

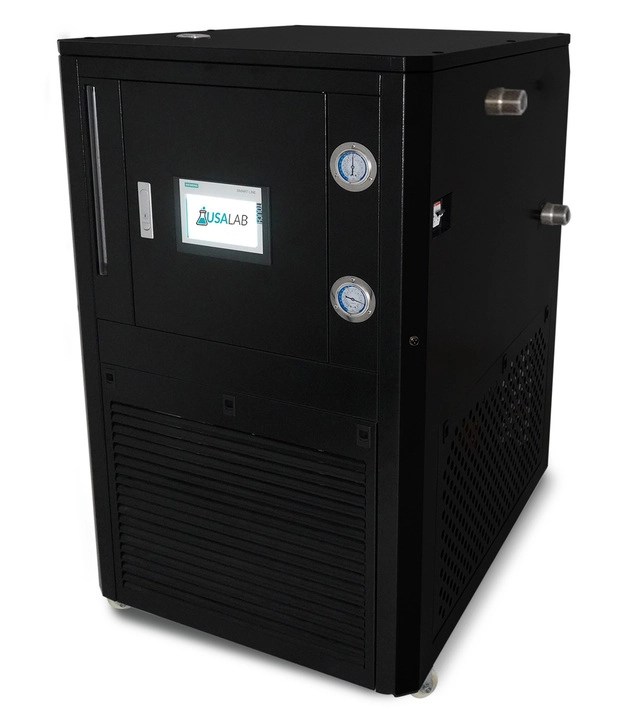

The CLC-100/40-PLC is a powerful -40°C Chiller with a 32L Expansion Tank. This unit is a true lab chiller that is ideal for applications involving vacuum systems,
jacketed reactors, rotary evaporators, columns, solvent tanks, and even analytical instruments. This system is great for large 100L reactors and other large vessel.
The CLC-100/40-PLC chiller offers unbeatable performance, ease of use and high reliability. These units keep quiet despite having a powerful pump allowing for
constant flow rates to match the needs of demanding applications.
This unit includes a Programmable Logic Controller (PLC).
A PLC will control whether the unit will cool or heat depending on the programmed steps and cycles overtime. The PLC also has an option for a static control to operate like a standard chiller.
CLC-100/40-PLC FEATURES
- Powerful chilling and high BTU range.
- High quality UL Listed compressor.
- Touchscreen Siemens HMI display.
- R404 refrigerant.
- 12ft of tubing included with Tri-Clamp connections.
- 1 Year warranty with US based parts and support.
- Closed loop for higher thermal transfer performance.
- Versatile Siemens PLC controller with external probe.
| Expansion Tank Capacity | 32L | |
| Tank Dimensions | 15.74″ x 7.87″ x 15.74″ | |
| Temperature Range | RT to -40°C / -40°F | |
| Power Requirements | 200-240V 60Hz 20.4A Three Phase – Hardwired Only | |
| Control Type | SIEMENS PLC S7-200 controller with external probe | |
| Refrigeration BTUs / Wattage | 75,000BTU – 1,250BTU / 22050-368W | |
| Total Power | 8460 W / 20.4A | |
| Plate Type Heating Area | Heating exchange area 2.50m2 | |
| Compressor Type | 10HP Danfoss (UL Listed) | |
| Circulating Pump Wattage | 750 W (UL Listed) | |
| Fan Wattage | 280W x 2pcs | |
| Temperature Accuracy | +/- 0.5°C | |
| Pump Flow | 35.7gpm (135L/Min) | |
| Lift | 82ft (25m) | |
| Pump Pressure | 36.3psi (2.5bar) | |
| Inlet / Outlet Size | 1.5″ FNPT | |
| Refrigerant | R404 | |
| External Dimensions | 43.3″ x 31.4″ x 51.2″ | |
| Weight | 430lbs | |
| Weight | 430 lbs |
|---|---|
| Dimensions | 43.3 × 31.4 × 51.2 in |
